CopperSpice API: Data in a Table View

The QSqlQueryModel, QSqlTableModel, and QSqlRelationalTableModel classes can be used as a data source for the CopperSpice view classes such as QListView, QTableView, and QTreeView. In practice QTableView is by far the most common choice, because an SQL result set is essentially a two-dimensional data structure.

A table view displaying a QSqlTableModel

The following example creates a view based on an SQL data model:

QTableView *view = new QTableView;
view->setModel(model);
view->show();

If the model is a read-write model such as QSqlTableModel, the view lets the user edit the fields. You can disable this by calling.

view->setEditTriggers(QAbstractItemView::NoEditTriggers);

You can use the same model as a data source for multiple views. If the user edits the model through one of the views, the other views will reflect the changes immediately. View classes display a header at the top to label the columns. To change the header texts, call QAbstractItemModel::setHeaderData() on the model. The header's labels default to the table's field names.

model->setHeaderData(0, Qt::Horizontal, QObject::tr("ID"));
model->setHeaderData(1, Qt::Horizontal, QObject::tr("Name"));
model->setHeaderData(2, Qt::Horizontal, QObject::tr("City"));
model->setHeaderData(3, Qt::Horizontal, QObject::tr("Country"));

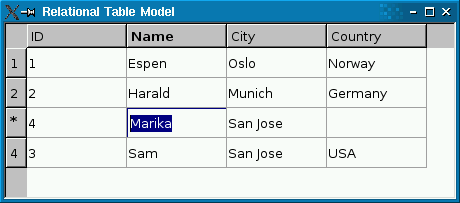

QTableView also has a vertical header on the left with numbers identifying the rows. If you insert rows programmatically using QSqlTableModel::insertRows(), the new rows will be marked with an asterisk (*) until they are submitted using QSqlTableModel::submitAll() or automatically when the user moves to another record, assuming the edit strategy is QSqlTableModel::OnRowChange.

Likewise, if you remove rows using QSqlTableModel::removeRows(), the rows will be marked with an exclamation mark (!) until the change is submitted.

The items in the view are rendered using a delegate. The default delegate, QItemDelegate, handles the most common data types such as int, QString, QImage, etc. The delegate is also responsible for providing editor widgets, such as a combobox, when the user starts editing an item in the view. You can create your own delegates by subclassing QAbstractItemDelegate or QItemDelegate.

Refer to the section on Model/View Architecture for more information.

QSqlTableModel is optimized to operate on a single table at a time. If you need a read-write model that operates on an arbitrary result set, you can subclass QSqlQueryModel and reimplement QAbstractItemModel::flags() and QAbstractItemModel::setData() to make it read-write. The following two functions make fields 1 and 2 of a query model editable.

Qt::ItemFlags EditableSqlModel::flags(const QModelIndex &index) const
{
   Qt::ItemFlags flags = QSqlQueryModel::flags(index);

   if (index.column() == 1 || index.column() == 2) {
      flags |= Qt::ItemIsEditable;
   }

   return flags;
}

bool EditableSqlModel::setData(const QModelIndex &index, const QVariant &value, int /* role */)
{
   if (index.column() < 1 || index.column() > 2) {
      return false;
   }

   QModelIndex primaryKeyIndex = QSqlQueryModel::index(index.row(), 0);
   int id = data(primaryKeyIndex).toInt();

   clear();

   bool ok;
   if (index.column() == 1) {
      ok = setFirstName(id, value.toString());
   } else {
      ok = setLastName(id, value.toString());
   }

   refresh();
   return ok;
}

The setFirstName() helper function is defined as follows:

bool EditableSqlModel::setFirstName(int personId, const QString &firstName)
{
   QSqlQuery query;
   query.prepare("update person set firstname = ? where id = ?");
   query.addBindValue(firstName);
   query.addBindValue(personId);

   return query.exec();
}

The setLastName() method is very similar.

Models

Subclassing a model allows you to customize what it does. You can provide tooltips for the items, change the background color, provide calculated values, provide different values for viewing and editing, and even handle null values.

If you simply need to resolve a foreign key to a human-friendly string, then use the QSqlRelationalTableModel class. For the best results use QSqlRelationalDelegate, which is a delegate that provides combobox editors for editing foreign keys.

Editing a foreign key in a relational table

See also: QAbstractItemView, Model/View Architecture
