The QTextFormat class provides formatting information for a QTextDocument. More...

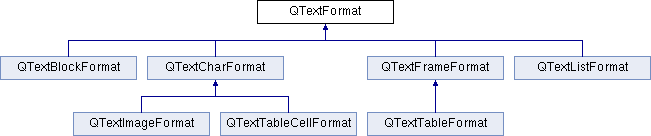

Inheritance diagram for QTextFormat:

Public Types
enum	FormatType

enum	ObjectTypes

enum	Property

Public Methods
	QTextFormat ()

	QTextFormat (const QTextFormat &other)

	QTextFormat (int type)

	~QTextFormat ()

QBrush	background () const

bool	boolProperty (int propertyId) const

QBrush	brushProperty (int propertyId) const

void	clearBackground ()

void	clearForeground ()

void	clearProperty (int propertyId)

QColor	colorProperty (int propertyId) const

qreal	doubleProperty (int propertyId) const

QBrush	foreground () const

bool	hasProperty (int propertyId) const

int	intProperty (int propertyId) const

bool	isBlockFormat () const

bool	isCharFormat () const

bool	isEmpty () const

bool	isFrameFormat () const

bool	isImageFormat () const

bool	isListFormat () const

bool	isTableCellFormat () const

bool	isTableFormat () const

bool	isValid () const

Qt::LayoutDirection	layoutDirection () const

QTextLength	lengthProperty (int propertyId) const

QVector< QTextLength >	lengthVectorProperty (int propertyId) const

void	merge (const QTextFormat &other)

int	objectIndex () const

int	objectType () const

	operator QVariant () const

bool	operator!= (const QTextFormat &other) const

QTextFormat &	operator= (const QTextFormat &other)

bool	operator== (const QTextFormat &other) const

QPen	penProperty (int propertyId) const

QMap< int, QVariant >	properties () const

QVariant	property (int propertyId) const

int	propertyCount () const

void	setBackground (const QBrush &brush)

void	setForeground (const QBrush &brush)

void	setLayoutDirection (Qt::LayoutDirection direction)

void	setObjectIndex (int index)

void	setObjectType (int type)

void	setProperty (int propertyId, const QVariant &value)

void	setProperty (int propertyId, const QVector< QTextLength > &value)

QString	stringProperty (int propertyId) const

void	swap (QTextFormat &other)

QTextBlockFormat	toBlockFormat () const

QTextCharFormat	toCharFormat () const

QTextFrameFormat	toFrameFormat () const

QTextImageFormat	toImageFormat () const

QTextListFormat	toListFormat () const

QTextTableCellFormat	toTableCellFormat () const

QTextTableFormat	toTableFormat () const

int	type () const

Friends
class	QTextCharFormat

Detailed Description

The QTextFormat class provides formatting information for a QTextDocument.

A QTextFormat is a generic class used for describing the format of parts of a QTextDocument. The derived classes QTextCharFormat, QTextBlockFormat, QTextListFormat, and QTextTableFormat are usually more useful, and describe the formatting that is applied to specific parts of the document.

A format has a FormatType which specifies the kinds of text item it can format; e.g. a block of text, a list, a table, etc. A format also has various properties (some specific to particular format types), as described by the Property enum. Every property has a corresponding Property.

The format type is given by type(), and the format can be tested with isCharFormat(), isBlockFormat(), isListFormat(), isTableFormat(), isFrameFormat(), and isImageFormat(). If the type is determined, it can be retrieved with toCharFormat(), toBlockFormat(), toListFormat(), toTableFormat(), toFrameFormat(), and toImageFormat().

A format's properties can be set with the setProperty() functions, and retrieved with boolProperty(), intProperty(), doubleProperty(), and stringProperty() as appropriate. All the property IDs used in the format can be retrieved with allPropertyIds(). One format can be merged into another using merge().

A format's object index can be set with setObjectIndex(), and retrieved with objectIndex(). These methods can be used to associate the format with a QTextObject. It is used to represent lists, frames, and tables inside the document.

See also: Rich Text Processing

Member Enumeration Documentation

enum QTextFormat::FormatType

This enum describes the text item a QTextFormat object is formatting.

Constant	Value	Description
`QTextFormat::InvalidFormat`	`-1`	An invalid format as created by the default constructor
`QTextFormat::BlockFormat`	`1`	The object formats a text block
`QTextFormat::CharFormat`	`2`	The object formats a single character
`QTextFormat::ListFormat`	`3`	The object formats a list
`QTextFormat::TableFormat`	`4`	The object formats a table
`QTextFormat::FrameFormat`	`5`	The object formats a frame
`QTextFormat::UserFormat`	`100`

See also: QTextCharFormat, QTextBlockFormat, QTextListFormat, QTextTableFormat, type()

enum QTextFormat::ObjectTypes

This enum describes what kind of QTextObject this format is associated with.

Constant	Value	Description
`QTextFormat::NoObject`	`0`
`QTextFormat::ImageObject`	`1`
`QTextFormat::TableObject`	`2`
`QTextFormat::TableCellObject`	`3`
`QTextFormat::UserObject`	`0x1000`	The first object that can be used for application-specific purposes.

See also: QTextObject, QTextTable, QTextObject::format()

enum QTextFormat::Property

This enum describes the different properties a format can have.

Constant	Value	Description
`QTextFormat::ObjectIndex`	`0x0`	The index of the formatted object. See objectIndex().

Paragraph and character properties

Constant	Value	Description
`QTextFormat::CssFloat`	`0x0800`	How a frame is located relative to the surrounding text
`QTextFormat::LayoutDirection`	`0x0801`	The layout direction of the text in the document (Qt::LayoutDirection).
`QTextFormat::OutlinePen`	`0x810`
`QTextFormat::ForegroundBrush`	`0x821`
`QTextFormat::BackgroundBrush`	`0x820`
`QTextFormat::BackgroundImageUrl`	`0x823`

Paragraph properties

Constant	Value	Description
`QTextFormat::BlockAlignment`	`0x1010`
`QTextFormat::BlockTopMargin`	`0x1030`
`QTextFormat::BlockBottomMargin`	`0x1031`
`QTextFormat::BlockLeftMargin`	`0x1032`
`QTextFormat::BlockRightMargin`	`0x1033`
`QTextFormat::TextIndent`	`0x1034`
`QTextFormat::TabPositions`	`0x1035`	Specifies the tab positions. The tab positions are structs of QTextOption::Tab which are stored in a QList (internally, in a QList<QVariant>).
`QTextFormat::BlockIndent`	`0x1040`
`QTextFormat::LineHeight`	`0x1048`
`QTextFormat::LineHeightType`	`0x1049`
`QTextFormat::BlockNonBreakableLines`	`0x1050`
`QTextFormat::BlockTrailingHorizontalRulerWidth`	`0x1060`	The width of a horizontal ruler element.

Character properties

Constant	Value	Description
`QTextFormat::FontFamily`	`0x2000`
`QTextFormat::FontPointSize`	`0x2001`
`QTextFormat::FontPixelSize`	`0x2009`
`QTextFormat::FontSizeAdjustment`	`0x2002`	Specifies the change in size given to the fontsize already set using FontPointSize or FontPixelSize.
`QTextFormat::FontFixedPitch`	`0x2008`
`QTextFormat::FontWeight`	`0x2003`
`QTextFormat::FontItalic`	`0x2004`
`QTextFormat::FontUnderline`	`0x2005`	This property has been deprecated. Use QTextFormat::TextUnderlineStyle instead.
`QTextFormat::FontOverline`	`0x2006`
`QTextFormat::FontStrikeOut`	`0x2007`
`QTextFormat::FontCapitalization`	`FirstFontProperty`	Specifies the capitalization type that is to be applied to the text.
`QTextFormat::FontLetterSpacing`	`0x1FE1`	Changes the default spacing between individual letters in the font. The value is specified in percentage, with 100 as the default value.
`QTextFormat::FontWordSpacing`	`0x1FE2`	Changes the default spacing between individual words. A positive value increases the word spacing by the corresponding pixels; a negative value decreases the spacing.
`QTextFormat::FontStyleHint`	`0x1FE3`	Corresponds to the QFont::StyleHint property
`QTextFormat::FontStyleStrategy`	`0x1FE4`	Corresponds to the QFont::StyleStrategy property
`QTextFormat::FontKerning`	`0x1FE5`	Specifies whether the font has kerning turned on.
`QTextFormat::FontHintingPreference`	`0x1FE6`	Controls the use of hinting according to values of the QFont::HintingPreference enum.
`QTextFormat::TextUnderlineColor`	`0x2010`
`QTextFormat::TextVerticalAlignment`	`0x2021`
`QTextFormat::TextOutline`	`0x2022`
`QTextFormat::TextUnderlineStyle`	`0x2023`
`QTextFormat::TextToolTip`	`0x2024`	Specifies the (optional) tool tip to be displayed for a fragment of text.
`QTextFormat::IsAnchor`	`0x2030`
`QTextFormat::AnchorHref`	`0x2031`
`QTextFormat::AnchorName`	`0x2032`
`QTextFormat::ObjectType`	`0x2f00`

List properties

Constant	Value	Description
`QTextFormat::ListStyle`	`0x3000`	Specifies the style used for the items in a list, described by values of the QTextListFormat::Style enum.
`QTextFormat::ListIndent`	`0x3001`	Specifies the amount of indentation used for a list.
`QTextFormat::ListNumberPrefix`	`0x3002`	Defines the text which is prepended to item numbers in numeric lists.
`QTextFormat::ListNumberSuffix`	`0x3003`	Defines the text which is appended to item numbers in numeric lists.

Table and frame properties

Constant	Value	Description
`QTextFormat::FrameBorder`	`0x4000`
`QTextFormat::FrameBorderBrush`	`0x4009`
`QTextFormat::FrameBorderStyle`	`0x4010`	See the BorderStyle enum.
`QTextFormat::FrameBottomMargin`	`0x4006`
`QTextFormat::FrameHeight`	`0x4004`
`QTextFormat::FrameLeftMargin`	`0x4007`
`QTextFormat::FrameMargin`	`0x4001`
`QTextFormat::FramePadding`	`0x4002`
`QTextFormat::FrameRightMargin`	`0x4008`
`QTextFormat::FrameTopMargin`	`0x4005`
`QTextFormat::FrameWidth`	`0x4003`
`QTextFormat::TableCellSpacing`	`0x4102`
`QTextFormat::TableCellPadding`	`0x4103`
`QTextFormat::TableColumns`	`0x4100`
`QTextFormat::TableColumnWidthConstraints`	`0x4101`
`QTextFormat::TableHeaderRowCount`	`0x4104`

Table cell properties

Constant	Value
`QTextFormat::TableCellRowSpan`	`0x4810`
`QTextFormat::TableCellColumnSpan`	`0x4811`
`QTextFormat::TableCellLeftPadding`	`0x4814`
`QTextFormat::TableCellRightPadding`	`0x4815`
`QTextFormat::TableCellTopPadding`	`0x4812`
`QTextFormat::TableCellBottomPadding`	`0x4813`

Image properties

Constant	Value
`QTextFormat::ImageName`	`0x5000`
`QTextFormat::ImageWidth`	`0x5010`
`QTextFormat::ImageHeight`	`0x5011`

Selection properties

Constant	Value	Description
`QTextFormat::FullWidthSelection`	`0x06000`	When set on the characterFormat of a selection, the whole width of the text will be shown selected.

Page break properties

Constant	Value	Description
`QTextFormat::PageBreakPolicy`	`0x7000`	Specifies how pages are broken. See the PageBreakFlag enum.
`QTextFormat::UserProperty`	`0x100000`

See also: property(), setProperty()

Constructor & Destructor Documentation

QTextFormat::QTextFormat ( )

Creates a new text format with an InvalidFormat.

See also: FormatType

QTextFormat::QTextFormat ( int type )

explicit

Creates a new text format of the given type.

See also: FormatType

QTextFormat::QTextFormat ( const QTextFormat & other )

Creates a new text format with the same attributes as the other text format.

QTextFormat::~QTextFormat ( )

Destroys this text format.

Method Documentation

QBrush QTextFormat::background ( ) const

inline

Returns the brush used to paint the document's background.

See also: setBackground(), clearBackground(), foreground()

bool QTextFormat::boolProperty ( int propertyId ) const

Returns the value of the property specified by propertyId. If the property is not of QTextFormat::Bool type, false is returned instead.

See also: setProperty(), intProperty(), doubleProperty(), stringProperty(), colorProperty(), lengthProperty(), lengthVectorProperty(), Property

QBrush QTextFormat::brushProperty ( int propertyId ) const

Returns the value of the property given by propertyId. If the property is not of QVariant::Brush type, Qt::NoBrush is returned instead.

See also: setProperty(), boolProperty(), intProperty(), doubleProperty(), stringProperty(), lengthProperty(), lengthVectorProperty(), Property

void QTextFormat::clearBackground ( )

inline

Clears the brush used to paint the document's background. The default brush will be used.

See also: background(), setBackground(), clearForeground()

void QTextFormat::clearForeground ( )

inline

Clears the brush used to paint the document's foreground. The default brush will be used.

See also: foreground(), setForeground(), clearBackground()

void QTextFormat::clearProperty ( int propertyId )

Clears the value of the property given by propertyId

See also: Property

QColor QTextFormat::colorProperty ( int propertyId ) const

Returns the value of the property given by propertyId. If the property is not of QVariant::Color type, an invalid color is returned instead.

See also: setProperty(), boolProperty(), intProperty(), doubleProperty(), stringProperty(), lengthProperty(), lengthVectorProperty(), Property

qreal QTextFormat::doubleProperty ( int propertyId ) const

Returns the value of the property specified by propertyId. If the property is not of QVariant::Double or QVariant::Float type, 0 is returned instead.

See also: setProperty(), boolProperty(), intProperty(), stringProperty(), colorProperty(), lengthProperty(), lengthVectorProperty(), Property

QBrush QTextFormat::foreground ( ) const

inline

Returns the brush used to render foreground details, such as text, frame outlines, and table borders.

See also: setForeground(), clearForeground(), background()

bool QTextFormat::hasProperty ( int propertyId ) const

Returns true if the text format has a property with the given propertyId, otherwise returns false.

See also: properties(), Property

int QTextFormat::intProperty ( int propertyId ) const

Returns the value of the property specified by propertyId. If the property is not of QTextFormat::Integer type, 0 is returned instead.

See also: setProperty(), boolProperty(), doubleProperty(), stringProperty(), colorProperty(), lengthProperty(), lengthVectorProperty(), Property

bool QTextFormat::isBlockFormat ( ) const

inline

Returns true if this text format is a BlockFormat, otherwise returns false.

bool QTextFormat::isCharFormat ( ) const

inline

Returns true if this text format is a CharFormat, otherwise returns false.

bool QTextFormat::isEmpty ( ) const

inline

Returns true if the format does not store any properties, otherwise returns false.

See also: propertyCount(), properties()

bool QTextFormat::isFrameFormat ( ) const

inline

Returns true if this text format is a FrameFormat, otherwise returns false.

bool QTextFormat::isImageFormat ( ) const

inline

Returns true if this text format is an image format, otherwise returns false.

bool QTextFormat::isListFormat ( ) const

inline

Returns true if this text format is a ListFormat, otherwise returns false.

bool QTextFormat::isTableCellFormat ( ) const

inline

Returns true if this text format is a TableCellFormat, otherwise returns false.

bool QTextFormat::isTableFormat ( ) const

inline

Returns true if this text format is a TableFormat, otherwise returns false.

bool QTextFormat::isValid ( ) const

inline

Returns true if the format is valid (i.e. is not InvalidFormat), otherwise returns false.

Qt::LayoutDirection QTextFormat::layoutDirection ( ) const

inline

Returns the document's layout direction.

See also: setLayoutDirection()

QTextLength QTextFormat::lengthProperty ( int propertyId ) const

Returns the value of the property given by propertyId.

See also: setProperty(), boolProperty(), intProperty(), doubleProperty(), stringProperty(), colorProperty(), lengthVectorProperty(), Property

QVector< QTextLength > QTextFormat::lengthVectorProperty ( int propertyId ) const

Returns the value of the property given by propertyId. If the property is not of QTextFormat::LengthVector type, an empty length vector is returned instead.

See also: setProperty(), boolProperty(), intProperty(), doubleProperty(), stringProperty(), colorProperty(), lengthProperty(), Property

void QTextFormat::merge ( const QTextFormat & other )

Merges the other format with this format; where there are conflicts the other format takes precedence.

int QTextFormat::objectIndex ( ) const

Returns the index of the format object, or -1 if the format object is invalid.

See also: setObjectIndex()

int QTextFormat::objectType ( ) const

inline

Returns the text format's object type.

See also: ObjectTypes, setObjectType()

QTextFormat::operator QVariant ( ) const

Returns the text format as a QVariant

bool QTextFormat::operator!= ( const QTextFormat & other ) const

inline

Returns true if this text format is different from the other text format.

QTextFormat & QTextFormat::operator= ( const QTextFormat & other )

Copy assigns from other and returns a reference to this object.

bool QTextFormat::operator== ( const QTextFormat & other ) const

Returns true if this text format is the same as the other text format.

QPen QTextFormat::penProperty ( int propertyId ) const

Returns the value of the property given by propertyId. If the property is not of QVariant::Pen type, Qt::NoPen is returned instead.

See also: setProperty(), boolProperty(), intProperty(), doubleProperty(), stringProperty(), lengthProperty(), lengthVectorProperty(), Property

QMap< int, QVariant > QTextFormat::properties ( ) const

Returns a map with all properties of this text format.

QVariant QTextFormat::property ( int propertyId ) const

Returns the property specified by the given propertyId.

See also: setProperty(), Property

int QTextFormat::propertyCount ( ) const

Returns the number of properties stored in the format.

void QTextFormat::setBackground ( const QBrush & brush )

inline

Sets the brush use to paint the document's background to the brush specified.

See also: background(), clearBackground(), setForeground()

void QTextFormat::setForeground ( const QBrush & brush )

inline

Sets the foreground brush to the specified brush. The foreground brush is mostly used to render text.

See also: foreground(), clearForeground(), setBackground()

void QTextFormat::setLayoutDirection ( Qt::LayoutDirection direction )

inline

Sets the document's layout direction to the specified direction.

See also: layoutDirection()

void QTextFormat::setObjectIndex ( int index )

Sets the format object's object index.

See also: objectIndex()

void QTextFormat::setObjectType ( int type )

inline

Sets the text format's object type to type.

See also: ObjectTypes, objectType()

void QTextFormat::setProperty	(	int	propertyId,
		const QVariant &	value
	)

Sets the property specified by the propertyId to the given value.

See also: property(), Property

void QTextFormat::setProperty	(	int	propertyId,
		const QVector< QTextLength > &	value
	)

Sets the value of the property given by propertyId to value.

See also: lengthVectorProperty(), Property

QString QTextFormat::stringProperty ( int propertyId ) const

Returns the value of the property given by propertyId. If the property is not of QVariant::String type, an empty string is returned instead.

See also: setProperty(), boolProperty(), intProperty(), doubleProperty(), colorProperty(), lengthProperty(), lengthVectorProperty(), Property

void QTextFormat::swap ( QTextFormat & other )

inline

Swaps this text format with other. This function is very fast and never fails.

QTextBlockFormat QTextFormat::toBlockFormat ( ) const

Returns this format as a block format.

QTextCharFormat QTextFormat::toCharFormat ( ) const

Returns this format as a character format.

QTextFrameFormat QTextFormat::toFrameFormat ( ) const

Returns this format as a frame format.

QTextImageFormat QTextFormat::toImageFormat ( ) const

Returns this format as an image format.

QTextListFormat QTextFormat::toListFormat ( ) const

Returns this format as a list format.

QTextTableCellFormat QTextFormat::toTableCellFormat ( ) const

Returns this format as a table cell format.

QTextTableFormat QTextFormat::toTableFormat ( ) const

Returns this format as a table format.

int QTextFormat::type ( ) const

Returns the type of this format.

See also: FormatType

Public Types

Public Methods

Friends

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Method Documentation
