Base class for all animations. More...

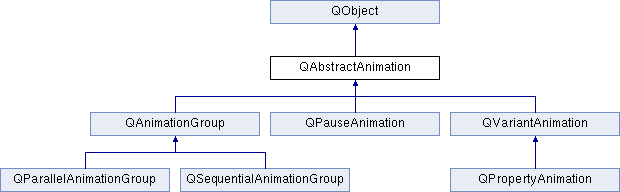

Inheritance diagram for QAbstractAnimation:

Public Types
enum	DeletionPolicy

enum	Direction

enum	State

Public Signals
void	currentLoopChanged (int currentLoop)

void	directionChanged (QAbstractAnimation::Direction newDirection)

void	finished ()

void	stateChanged (QAbstractAnimation::State newState, QAbstractAnimation::State oldState)

Public Signals inherited from QObject
void	destroyed (QObject *obj=nullptr)

void	objectNameChanged (const QString &objectName)

Public Slots
void	pause ()

void	resume ()

void	setCurrentTime (int msecs)

void	setPaused (bool paused)

void	start (QAbstractAnimation::DeletionPolicy policy=KeepWhenStopped)

void	stop ()

Public Slots inherited from QObject
void	deleteLater ()

Public Methods
	QAbstractAnimation (QObject *parent=nullptr)

virtual	~QAbstractAnimation ()

int	currentLoop () const

int	currentLoopTime () const

int	currentTime () const

Direction	direction () const

virtual int	duration () const = 0

QAnimationGroup *	group () const

int	loopCount () const

void	setDirection (Direction direction)

void	setLoopCount (int loopCount)

State	state () const

int	totalDuration () const

Public Methods inherited from QObject
	QObject (QObject *parent=nullptr)

	~QObject ()

bool	blockSignals (bool block)

const QList< QObject * > &	children () const

bool	connect (const QObject *sender, const QString &signalMethod, const QString &location, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool	connect (const QObject *sender, const QString &signalMethod, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool	disconnect (const QObject *receiver, const QString &slotMethod=QString ()) const

bool	disconnect (const QString &signalMethod, const QString &location, const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

bool	disconnect (const QString &signalMethod=QString (), const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

void	dumpObjectInfo ()

void	dumpObjectTree ()

QList< QString >	dynamicPropertyNames () const

virtual bool	eventFilter (QObject watched, QEvent event)

template<typename T >
T	findChild (const QString &childName=QString ()) const

template<class T >
QList< T >	findChildren (const QRegularExpression &regExp, Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

template<class T >
QList< T >	findChildren (const QString &childName=QString (), Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

bool	inherits (const QString &className) const

void	installEventFilter (QObject *filterObj)

bool	isWidgetType () const

bool	isWindowType () const

void	killTimer (int id)

const QMetaObject *	metaObject () const

void	moveToThread (QThread *targetThread)

QString	objectName () const

QObject *	parent () const

template<class T = QVariant>
T	property (const QString &name) const

void	removeEventFilter (QObject *obj)

void	setObjectName (const QString &name)

void	setParent (QObject *parent)

bool	setProperty (const QString &name, const QVariant &value)

bool	signalsBlocked () const

int	startTimer (int interval, Qt::TimerType timerType=Qt::CoarseTimer)

QThread *	thread () const

Protected Methods
bool	event (QEvent *event) override

virtual void	updateCurrentTime (int currentTime) = 0

virtual void	updateDirection (QAbstractAnimation::Direction direction)

virtual void	updateState (QAbstractAnimation::State newState, QAbstractAnimation::State oldState)

Protected Methods inherited from QObject
virtual void	childEvent (QChildEvent *event)

virtual void	connectNotify (const QMetaMethod &signalMethod) const

virtual void	customEvent (QEvent *event)

virtual void	disconnectNotify (const QMetaMethod &signalMethod) const

bool	isSignalConnected (const QMetaMethod &signalMethod) const

int	receivers (const QString &signal) const

QObject *	sender () const

int	senderSignalIndex () const

virtual void	timerEvent (QTimerEvent *event)

Properties
	currentLoop

	currentTime

	direction

	duration

	loopCount

	state

Properties inherited from QObject
	objectName

Additional Inherited Members
Static Public Methods inherited from QObject
static bool	connect (const QObject sender, const QMetaMethod &signalMethod, const QObject receiver, const QMetaMethod &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

static bool	connect (const QObject sender, const QString &signalMethod, const QObject receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection, const QString &location=QString ())

static bool	connect (const QObject sender, const QString &signalMethod, const QString &location, const QObject receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool	connect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver receiver, SlotReturn (SlotClass::slotMethod)(SlotArgs...), Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool	connect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, T slotLambda, Qt::ConnectionType type=Qt::AutoConnection)

static bool	disconnect (const QObject sender, const QMetaMethod &signalMethod, const QObject receiver, const QMetaMethod &slotMethod)

static bool	disconnect (const QObject sender, const QString &signalMethod, const QObject receiver, const QString &slotMethod)

static bool	disconnect (const QObject sender, const QString &signalMethod, const QString &location, const QObject receiver, const QString &slotMethod)

static bool	disconnect (const QObject sender, std::nullptr_t, const QObject receiver, std::nullptr_t)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver receiver, SlotReturn (SlotClass::slotMethod)(SlotArgs...))

template<class Sender , class SignalClass , class... SignalArgs, class Receiver >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, std::nullptr_t slotMethod=nullptr)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, T slotMethod)

static QMetaObject &	staticMetaObject ()

static QString	tr (const char text, const char comment=nullptr, std::optional< int > numArg=std::optional< int >())

Related Functions inherited from QObject
T	qobject_cast (QObject *object)

	QObjectList

Detailed Description

This class defines the methods for the functionality shared by all animations. By inheriting from this class you can create custom animations that plug into the rest of the Animation Technology.

The progress of an animation is given by its current time (currentLoopTime()), which is measured in milliseconds from the start of the animation (0) to its end (duration()). The value is updated automatically while the animation is running. It can also be set directly with setCurrentTime().

At any point an animation is in one of three states: Running, Stopped, or Paused, as defined by the State enum. The current state can be changed by calling start(), stop(), pause(), or resume(). An animation will always reset its current time when it is started. If paused, it will continue with the same current time when resumed. When an animation is stopped, it can not be resumed, but will keep its current time (until started again). QAbstractAnimation will emit stateChanged() whenever its state changes.

An animation can loop any number of times by setting the loopCount property. When an animation's current time reaches its duration(), it will reset the current time and keep running. A loop count of 1 (the default value) means that the animation will run one time. A duration of -1 means that the animation will run until stopped. The current time will increase indefinitely. When the current time equals duration() and the animation is in its final loop, the Stopped state is entered, and the finished() signal is emitted.

QAbstractAnimation provides pure virtual methods used by inherited classes to track the progress of the animation. The duration() method lets you report a duration for the animation. The animation technology calls updateCurrentTime() when current time has changed. By reimplementing this method you can track the animation progress. Neither the interval between calls nor the number of calls to this method are defined. It will normally be 60 updates per second.

When overriding updateState() you can track the animation's state changes which is particularly useful for animations which are not driven by time.

See also: QVariantAnimation, QPropertyAnimation, QAnimationGroup, Animation Technology

Member Enumeration Documentation

enum QAbstractAnimation::DeletionPolicy

Constant	Value	Description
`QAbstractAnimation::KeepWhenStopped`	`0`	Animation will not be deleted when stopped.
`QAbstractAnimation::DeleteWhenStopped`	`1`	Animation will be automatically deleted when stopped.

enum QAbstractAnimation::Direction

This enum describes the direction of the animation when in Running state.

Constant	Value	Description
`QAbstractAnimation::Forward`	`0`	Animation increases with time, moves from 0 and towards the end / duration
`QAbstractAnimation::Backward`	`1`qstyleoption_cast()	Animation decreases with time, moves from the end / duration and towards 0

See also: direction

enum QAbstractAnimation::State

This enum describes the state of the animation.

Constant	Value	Description
`QAbstractAnimation::Stopped`	`0`	Animation is not running. This is the initial state and the state QAbstractAnimation reenters when finished. The current time remain unchanged until either setCurrentTime() is called, or the animation is started by calling start().
`QAbstractAnimation::Paused`	`1`	Animation is paused, temporarily suspended. Call resume() to continue the animation activity.
`QAbstractAnimation::Running`	`2`	Animation is running. While control is in the event loop, QAbstractAnimation will update its current time at regular intervals, calling updateCurrentTime() when appropriate.

See also: state(), stateChanged()

Constructor & Destructor Documentation

QAbstractAnimation::QAbstractAnimation ( QObject * parent = nullptr )

Constructs the QAbstractAnimation base class. The parent object is passed to the QObject constructor.

See also: QVariantAnimation, QAnimationGroup

QAbstractAnimation::~QAbstractAnimation ( )

virtual

Stops the animation if it is running, then destroys the QAbstractAnimation. If the animation is part of a QAnimationGroup, it is automatically removed before being destroyed.

Method Documentation

int QAbstractAnimation::currentLoop ( ) const

Returns the value of the currentLoop property.

void QAbstractAnimation::currentLoopChanged ( int currentLoop )

signal

QAbstractAnimation emits this signal whenever the currentLoop changes.

See also: currentLoop(), loopCount()

int QAbstractAnimation::currentLoopTime ( ) const

Returns the current time inside the current loop. It can go from 0 to duration().

See also: duration(), currentTime

int QAbstractAnimation::currentTime ( ) const

Returns the value of the currentTime property.

Direction QAbstractAnimation::direction ( ) const

Returns the value of the Direction property.

void QAbstractAnimation::directionChanged ( QAbstractAnimation::Direction newDirection )

signal

QAbstractAnimation emits this signal whenever the newDirection changs.

See also: direction

int QAbstractAnimation::duration ( ) const

pure virtual

Returns the value of the Duration property.

Implemented in QVariantAnimation::duration(), QSequentialAnimationGroup::duration(), QPauseAnimation::duration(), QParallelAnimationGroup::duration()

bool QAbstractAnimation::event ( QEvent * event )

overrideprotectedvirtual

Reimplemented from QObject::event()

Reimplemented in QVariantAnimation::event(), QSequentialAnimationGroup::event(), QPropertyAnimation::event(), QAnimationGroup::event(), QPauseAnimation::event(), QParallelAnimationGroup::event()

void QAbstractAnimation::finished ( )

signal

QAbstractAnimation emits this signal after the animation has stopped and has reached the end.

This signal is emitted after stateChanged().

See also: stateChanged()

QAnimationGroup * QAbstractAnimation::group ( ) const

If this animation is part of a QAnimationGroup, this method returns a pointer to the group, otherwise it returns a nullptr.

See also: QAnimationGroup::addAnimation()

int QAbstractAnimation::loopCount ( ) const

Returns the value of the loopCount property.

void QAbstractAnimation::pause ( )

slot

Pauses the animation. When the animation is paused, state() returns Paused. The value of currentTime will remain unchanged until resume() or start() is called. If you want to continue from the current time, call resume().

See also: start(), state(), resume()

void QAbstractAnimation::resume ( )

slot

Resumes the animation after it was paused. When the animation is resumed, it emits the resumed() and stateChanged() signals. The currenttime is not changed.

See also: start(), pause(), state()

void QAbstractAnimation::setCurrentTime ( int msecs )

slot

Sets the value of the property to msecs.

void QAbstractAnimation::setDirection ( Direction direction )

Sets the value of the Direction property to direction.

void QAbstractAnimation::setLoopCount ( int loopCount )

Sets the value of the property to loopCount.

void QAbstractAnimation::setPaused ( bool paused )

slot

If paused is true, the animation is paused. If paused is false, the animation is resumed.

See also: state(), pause(), resume()

void QAbstractAnimation::start ( QAbstractAnimation::DeletionPolicy policy = KeepWhenStopped )

slot

Starts the animation. The policy argument says whether or not the animation should be deleted when it is done. When the animation starts, the stateChanged() signal is emitted, and state() returns Running. When control reaches the event loop, the animation will run by itself, periodically calling updateCurrentTime() as the animation progresses.

If the animation is currently stopped or has already reached the end, calling start() will rewind the animation and start again from the beginning. When the animation reaches the end, the animation will either stop, or if the loop level is more than 1, it will rewind and continue from the beginning.

If the animation is already running, this method does nothing.

See also: stop(), state()

State QAbstractAnimation::state ( ) const

Returns the value of the property.

void QAbstractAnimation::stateChanged	(	QAbstractAnimation::State	newState,
		QAbstractAnimation::State	oldState
	)

signal

QAbstractAnimation emits this signal whenever the state of the animation has changed from oldState to newState. This signal is emitted after the virtual updateState() method is called.

See also: updateState()

void QAbstractAnimation::stop ( )

slot

Stops the animation. When the animation is stopped, it emits the stateChanged() signal, and state() returns Stopped. The current time is not changed.

If the animation stops by itself after reaching the end (i.e., currentLoopTime() == duration() and currentLoop() > loopCount() - 1), the finished() signal is emitted.

See also: start(), state()

int QAbstractAnimation::totalDuration ( ) const

Returns the total and effective duration of the animation, including the loop count.

See also: duration(), currentTime

void QAbstractAnimation::updateCurrentTime ( int currentTime )

protectedpure virtual

This pure virtual method is called every time the animation's currentTime changes.

See also: updateState()

Implemented in QVariantAnimation::updateCurrentTime(), QPauseAnimation::updateCurrentTime(), QSequentialAnimationGroup::updateCurrentTime(), QParallelAnimationGroup::updateCurrentTime()

void QAbstractAnimation::updateDirection ( QAbstractAnimation::Direction direction )

protectedvirtual

A virtual method invoked by QAbstractAnimation when the direction of the animation is changed. The direction argument is the new direction.

See also: setDirection(), direction()

Reimplemented in QSequentialAnimationGroup::updateDirection(), QParallelAnimationGroup::updateDirection()

void QAbstractAnimation::updateState	(	QAbstractAnimation::State	newState,
		QAbstractAnimation::State	oldState
	)

protectedvirtual

This method is called by QAbstractAnimation when the state of the animation is changed from oldState to newState.

See also: start(), stop(), pause(), resume()

Reimplemented in QVariantAnimation::updateState(), QSequentialAnimationGroup::updateState(), QPropertyAnimation::updateState(), QParallelAnimationGroup::updateState()

Property Documentation

QAbstractAnimation::currentLoop

This property holds the current loop of the animation.

By default the animation's loop count is 1, and so the current loop will always be 0. If the loop count is 2 and the animation runs past its duration, it will automatically rewind and restart at current time 0, and current loop 1, and so on.

When the current loop changes QAbstractAnimation emits the currentLoopChanged() signal.

Properties	Class Methods
read	currentLoop
notify	currentLoopChanged

QAbstractAnimation::currentTime

This property holds the current time and progress of the animation.

You can change the current time by calling setCurrentTime, or you can call start() and let the animation run, setting the current time automatically as the animation progresses. The animation's current time starts at 0 and ends at totalDuration().

See also: loopCount, currentLoopTime()

Properties	Class Methods
read	currentTime
write	setCurrentTime

QAbstractAnimation::direction

This property holds the direction of the animation when it is in Running state. This direction indicates whether the time moves from 0 towards the animation duration, or from the value of the duration and towards 0 after start() has been called. By default this property is set to Forward.

Properties	Class Methods
read	direction
write	setDirection
notify	directionChanged

QAbstractAnimation::duration

This property holds the duration of the animation. If the duration is -1, it means that the duration is undefined. In this case, loopCount is ignored.

Properties	Class Methods
read	duration

QAbstractAnimation::loopCount

This property holds the loop count of the animation which is an integer.

By default this value is 1, indicating that the animation should run once only, and then stop. By changing it you can let the animation loop several times. With a value of 0, the animation will not run at all, and with a value of -1, the animation will loop forever until stopped. It is not supported to have loop on an animation that has an undefined duration. It will only run once.

Properties	Class Methods
read	loopCount
write	setLoopCount

QAbstractAnimation::state

This property holds current state of the animation. When the animation state changes, QAbstractAnimation emits the stateChanged() signal.

Properties	Class Methods
read	state
notify	stateChanged

Public Types

Public Signals

Public Slots

Public Methods

Protected Methods

Properties

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

Constructor & Destructor Documentation

Method Documentation

Property Documentation
