The QAbstractState class is the base class for states in a QStateMachine. More...

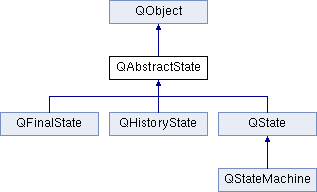

Inheritance diagram for QAbstractState:

Public Signals
void	activeChanged (bool active)

void	entered ()

void	exited ()

Public Signals inherited from QObject
void	destroyed (QObject *obj=nullptr)

void	objectNameChanged (const QString &objectName)

Public Methods
	~QAbstractState ()

bool	active () const

QStateMachine *	machine () const

QState *	parentState () const

Public Methods inherited from QObject
	QObject (QObject *parent=nullptr)

	~QObject ()

bool	blockSignals (bool block)

const QList< QObject * > &	children () const

bool	connect (const QObject *sender, const QString &signalMethod, const QString &location, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool	connect (const QObject *sender, const QString &signalMethod, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool	disconnect (const QObject *receiver, const QString &slotMethod=QString ()) const

bool	disconnect (const QString &signalMethod, const QString &location, const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

bool	disconnect (const QString &signalMethod=QString (), const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

void	dumpObjectInfo ()

void	dumpObjectTree ()

QList< QString >	dynamicPropertyNames () const

virtual bool	eventFilter (QObject watched, QEvent event)

template<typename T >
T	findChild (const QString &childName=QString ()) const

template<class T >
QList< T >	findChildren (const QRegularExpression &regExp, Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

template<class T >
QList< T >	findChildren (const QString &childName=QString (), Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

bool	inherits (const QString &className) const

void	installEventFilter (QObject *filterObj)

bool	isWidgetType () const

bool	isWindowType () const

void	killTimer (int id)

const QMetaObject *	metaObject () const

void	moveToThread (QThread *targetThread)

QString	objectName () const

QObject *	parent () const

template<class T = QVariant>
T	property (const QString &name) const

void	removeEventFilter (QObject *obj)

void	setObjectName (const QString &name)

void	setParent (QObject *parent)

bool	setProperty (const QString &name, const QVariant &value)

bool	signalsBlocked () const

int	startTimer (int interval, Qt::TimerType timerType=Qt::CoarseTimer)

QThread *	thread () const

Protected Methods
	QAbstractState (QState *parent=nullptr)

bool	event (QEvent *event) override

virtual void	onEntry (QEvent *event) = 0

virtual void	onExit (QEvent *event) = 0

Protected Methods inherited from QObject
virtual void	childEvent (QChildEvent *event)

virtual void	connectNotify (const QMetaMethod &signalMethod) const

virtual void	customEvent (QEvent *event)

virtual void	disconnectNotify (const QMetaMethod &signalMethod) const

bool	isSignalConnected (const QMetaMethod &signalMethod) const

int	receivers (const QString &signal) const

QObject *	sender () const

int	senderSignalIndex () const

virtual void	timerEvent (QTimerEvent *event)

Properties
	active

Properties inherited from QObject
	objectName

Additional Inherited Members
Public Slots inherited from QObject
void	deleteLater ()

Static Public Methods inherited from QObject
static bool	connect (const QObject sender, const QMetaMethod &signalMethod, const QObject receiver, const QMetaMethod &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

static bool	connect (const QObject sender, const QString &signalMethod, const QObject receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection, const QString &location=QString ())

static bool	connect (const QObject sender, const QString &signalMethod, const QString &location, const QObject receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool	connect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver receiver, SlotReturn (SlotClass::slotMethod)(SlotArgs...), Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool	connect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, T slotLambda, Qt::ConnectionType type=Qt::AutoConnection)

static bool	disconnect (const QObject sender, const QMetaMethod &signalMethod, const QObject receiver, const QMetaMethod &slotMethod)

static bool	disconnect (const QObject sender, const QString &signalMethod, const QObject receiver, const QString &slotMethod)

static bool	disconnect (const QObject sender, const QString &signalMethod, const QString &location, const QObject receiver, const QString &slotMethod)

static bool	disconnect (const QObject sender, std::nullptr_t, const QObject receiver, std::nullptr_t)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver receiver, SlotReturn (SlotClass::slotMethod)(SlotArgs...))

template<class Sender , class SignalClass , class... SignalArgs, class Receiver >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, std::nullptr_t slotMethod=nullptr)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, T slotMethod)

static QMetaObject &	staticMetaObject ()

static QString	tr (const char text, const char comment=nullptr, std::optional< int > numArg=std::optional< int >())

Related Functions inherited from QObject
T	qobject_cast (QObject *object)

	QObjectList

Detailed Description

The QAbstractState class is the abstract base class for states in a QStateMachine. It defines the interface that all state objects have in common. QAbstractState is part of State Machine.

The entered() signal is emitted when the state has been entered. The exited() signal is emitted when the state has been exited.

The parentState() method returns the state's parent state. The machine() function returns the state machine that the state is part of.

Subclassing

The onEntry() method is called when the state is entered. Reimplement this method to perform custom processing when the state is entered.

The onExit() method is called when the state is exited. Reimplement this method to perform custom processing when the state is exited.

Constructor & Destructor Documentation

QAbstractState::~QAbstractState ( )

Destroys this state object.

QAbstractState::QAbstractState ( QState * parent = nullptr )

protected

Constructs a new state with the given parent state.

Method Documentation

bool QAbstractState::active ( ) const

Returns whether this state is active.

See also: activeChanged(), entered(), exited()

void QAbstractState::activeChanged ( bool active )

signal

This signal is emitted when the active property is changed and active is passed.

See also: QAbstractState::active, entered(), exited()

void QAbstractState::entered ( )

signal

This signal is emitted when the state has been entered (after onEntry() has been called).

bool QAbstractState::event ( QEvent * event )

overrideprotectedvirtual

Reimplemented from QObject::event()

Reimplemented in QStateMachine::event(), QState::event(), QHistoryState::event(), QFinalState::event()

void QAbstractState::exited ( )

signal

This signal is emitted when the state has been exited (after onExit() has been called).

QStateMachine * QAbstractState::machine ( ) const

Returns the state machine this state is part of or nullptr if the state is not part of a state machine.

void QAbstractState::onEntry ( QEvent * event )

protectedpure virtual

This function is called when the state is entered. The given event is what caused the state to be entered. Reimplement this function to perform custom processing when the state is entered.

Implemented in QStateMachine::onEntry(), QState::onEntry(), QHistoryState::onEntry(), QFinalState::onEntry()

void QAbstractState::onExit ( QEvent * event )

protectedpure virtual

This function is called when the state is exited. The given event is what caused the state to be exited. Reimplement this method to perform custom processing when the state is exited.

Implemented in QStateMachine::onExit(), QState::onExit(), QHistoryState::onExit(), QFinalState::onExit()

QState * QAbstractState::parentState ( ) const

Returns this state's parent state or nullptr if the state has no parent state.

Property Documentation

QAbstractState::active

This property holds the active property of this state. A state is active between entered() and exited() signals.
