Provides a common base for multimedia objects. More...

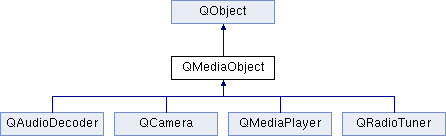

Inheritance diagram for QMediaObject:

Public Signals
void	availabilityChanged (bool available)

void	availabilityChanged (QMultimedia::AvailabilityStatus availability)

void	metaDataAvailableChanged (bool available)

void	metaDataChanged ()

void	metaDataChanged (const QString &key, const QVariant &value)

void	notifyIntervalChanged (int milliSeconds)

Public Signals inherited from QObject
void	destroyed (QObject *obj=nullptr)

void	objectNameChanged (const QString &objectName)

Public Methods
	~QMediaObject ()

virtual QMultimedia::AvailabilityStatus	availability () const

QStringList	availableMetaData () const

virtual bool	bind (QObject *object)

virtual bool	isAvailable () const

bool	isMetaDataAvailable () const

QVariant	metaData (const QString &key) const

int	notifyInterval () const

virtual QMediaService *	service () const

void	setNotifyInterval (int milliSeconds)

virtual void	unbind (QObject *object)

Public Methods inherited from QObject
	QObject (QObject *parent=nullptr)

	~QObject ()

bool	blockSignals (bool block)

const QList< QObject * > &	children () const

bool	connect (const QObject *sender, const QString &signalMethod, const QString &location, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool	connect (const QObject *sender, const QString &signalMethod, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool	disconnect (const QObject *receiver, const QString &slotMethod=QString ()) const

bool	disconnect (const QString &signalMethod, const QString &location, const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

bool	disconnect (const QString &signalMethod=QString (), const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

void	dumpObjectInfo ()

void	dumpObjectTree ()

QList< QString >	dynamicPropertyNames () const

virtual bool	event (QEvent *event)

virtual bool	eventFilter (QObject watched, QEvent event)

template<typename T >
T	findChild (const QString &childName=QString ()) const

template<class T >
QList< T >	findChildren (const QRegularExpression &regExp, Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

template<class T >
QList< T >	findChildren (const QString &childName=QString (), Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

bool	inherits (const QString &className) const

void	installEventFilter (QObject *filterObj)

bool	isWidgetType () const

bool	isWindowType () const

void	killTimer (int id)

const QMetaObject *	metaObject () const

void	moveToThread (QThread *targetThread)

QString	objectName () const

QObject *	parent () const

template<class T = QVariant>
T	property (const QString &name) const

void	removeEventFilter (QObject *obj)

void	setObjectName (const QString &name)

void	setParent (QObject *parent)

bool	setProperty (const QString &name, const QVariant &value)

bool	signalsBlocked () const

int	startTimer (int interval, Qt::TimerType timerType=Qt::CoarseTimer)

QThread *	thread () const

Protected Methods
	QMediaObject (QObject parent, QMediaService service)

template<typename T >
void	addPropertyWatch (const QString &name)

void	removePropertyWatch (const QString &name)

Protected Methods inherited from QObject
virtual void	childEvent (QChildEvent *event)

virtual void	connectNotify (const QMetaMethod &signalMethod) const

virtual void	customEvent (QEvent *event)

virtual void	disconnectNotify (const QMetaMethod &signalMethod) const

bool	isSignalConnected (const QMetaMethod &signalMethod) const

int	receivers (const QString &signal) const

QObject *	sender () const

int	senderSignalIndex () const

virtual void	timerEvent (QTimerEvent *event)

Properties
	notifyInterval

Properties inherited from QObject
	objectName

Additional Inherited Members
Public Slots inherited from QObject
void	deleteLater ()

Static Public Methods inherited from QObject
static bool	connect (const QObject sender, const QMetaMethod &signalMethod, const QObject receiver, const QMetaMethod &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

static bool	connect (const QObject sender, const QString &signalMethod, const QObject receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection, const QString &location=QString ())

static bool	connect (const QObject sender, const QString &signalMethod, const QString &location, const QObject receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool	connect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver receiver, SlotReturn (SlotClass::slotMethod)(SlotArgs...), Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool	connect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, T slotLambda, Qt::ConnectionType type=Qt::AutoConnection)

static bool	disconnect (const QObject sender, const QMetaMethod &signalMethod, const QObject receiver, const QMetaMethod &slotMethod)

static bool	disconnect (const QObject sender, const QString &signalMethod, const QObject receiver, const QString &slotMethod)

static bool	disconnect (const QObject sender, const QString &signalMethod, const QString &location, const QObject receiver, const QString &slotMethod)

static bool	disconnect (const QObject sender, std::nullptr_t, const QObject receiver, std::nullptr_t)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver receiver, SlotReturn (SlotClass::slotMethod)(SlotArgs...))

template<class Sender , class SignalClass , class... SignalArgs, class Receiver >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, std::nullptr_t slotMethod=nullptr)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, T slotMethod)

static QMetaObject &	staticMetaObject ()

static QString	tr (const char text, const char comment=nullptr, std::optional< int > numArg=std::optional< int >())

Related Functions inherited from QObject
T	qobject_cast (QObject *object)

	QObjectList

Detailed Description

It provides some basic functionality that is common to other high level classes like QMediaPlayer, QAudioDecoder and QCamera, including availability and meta-data functionality, as well as functionality to connect media objects with support classes like QMediaPlaylist.

The higher level QMediaObject derived classes provide the actual multimedia functionality, by internally using a QMediaService. Each media object hosts a QMediaService and uses the QMediaControl interfaces implemented by the service to implement its API. These controls can be accessed from the media object if necessary, but in general the useful functionality can be accessed from the higher level classes.

Most media objects when constructed will request a new QMediaService instance, but some like QMediaRecorder and QAudioRecorder will share a service with another object.

See also: QMediaService, QMediaControl

Constructor & Destructor Documentation

QMediaObject::~QMediaObject ( )

Destroys this media object.

QMediaObject::QMediaObject	(	QObject *	parent,
		QMediaService *	service
	)

protected

Constructs a media object which uses the functionality provided by a media service. The parent is passed to QObject.

This class is meant as a base class for multimedia objects so this constructor is protected.

Method Documentation

template<typename T >

void QMediaObject::addPropertyWatch ( const QString & name )

protected

The value for name is the property to be watched. The property's notify signal will be emitted once every notifyInterval milliseconds. When calling this method the data type of the notify signal must be specified.

For example, the media player has a property called position where the notify signal is positionChanged.

// qmediaplayer.h
CS_PROPERTY_READ(position,   position)
CS_PROPERTY_WRITE(position,  setPosition)
CS_PROPERTY_NOTIFY(position, positionChanged)

// qmediaplayer.cpp
addPropertyWatch<qint64>("position");

See also: removePropertyWatch(), notifyInterval

QMultimedia::AvailabilityStatus QMediaObject::availability ( ) const

virtual

Returns the availability of the functionality offered by this object.

In some cases the functionality may not be available (for example, if the current operating system or platform does not provide the required functionality), or it may be temporarily unavailable (for example, audio playback during a phone call or similar).

Reimplemented in QMediaPlayer::availability(), QCamera::availability(), QRadioTuner::availability()

void QMediaObject::availabilityChanged ( bool available )

signal

Signal emitted when the availability state has changed to available.

void QMediaObject::availabilityChanged ( QMultimedia::AvailabilityStatus availability )

signal

Signal emitted when the availability of the service has changed to availability.

QStringList QMediaObject::availableMetaData ( ) const

Returns a list of keys there is meta-data available for.

bool QMediaObject::bind ( QObject * object )

virtual

Bind object to this QMediaObject instance. This method establishes a relationship between this media object and a helper object. The nature of the relationship depends on both parties. This methods returns true if the helper was successfully bound, false otherwise.

Most subclasses of QMediaObject provide more convenient functions that wrap this functionality so this function rarely needs to be called directly.

The object passed must implement the QMediaBindableInterface interface.

See also: QMediaBindableInterface

Reimplemented in QAudioDecoder::bind()

bool QMediaObject::isAvailable ( ) const

virtual

Returns true if the service is available for use.

bool QMediaObject::isMetaDataAvailable ( ) const

Returns true if there is meta data associated with this media object, else false.

QVariant QMediaObject::metaData ( const QString & key ) const

Returns the value associated with a meta-data key.

See also: QMediaMetaData

void QMediaObject::metaDataAvailableChanged ( bool available )

signal

Signals that the available state of a media object's meta-data has changed.

void QMediaObject::metaDataChanged ( )

signal

Signals that this media object's meta-data has changed.

If multiple meta-data elements are changed, metaDataChanged(const QString &key, const QVariant &value) signal is emitted for each of them with metaDataChanged() changed emitted once.

void QMediaObject::metaDataChanged	(	const QString &	key,
		const QVariant &	value
	)

signal

Signal the changes of one meta-data element value with the given key.

int QMediaObject::notifyInterval ( ) const

Documentation pending.

void QMediaObject::notifyIntervalChanged ( int milliSeconds )

signal

Signal a change in the notify interval period to milliSeconds.

void QMediaObject::removePropertyWatch ( const QString & name )

protected

Remove property name from the list of properties whose changes are regularly signaled.

See also: addPropertyWatch, notifyInterval

QMediaService * QMediaObject::service ( ) const

virtual

Returns the media service that provides the functionality of this multimedia object.

void QMediaObject::setNotifyInterval ( int milliSeconds )

Documentation pending.

void QMediaObject::unbind ( QObject * object )

virtual

Detach object from the QMediaObject instance. Unbind the helper object from this media object. A warning will be generated if the object was not previously bound to this object.

See also: QMediaBindableInterface

Reimplemented in QAudioDecoder::unbind()

Property Documentation

QMediaObject::notifyInterval

The interval at which notifiable properties will update. The interval is expressed in milliseconds, the default value is 1000.

See also: addPropertyWatch(), removePropertyWatch()
