Base class of transitions between QAbstractState objects. More...

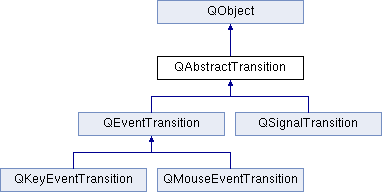

Inheritance diagram for QAbstractTransition:

Public Types
enum	TransitionType

Public Signals
void	targetStateChanged ()

void	targetStatesChanged ()

void	triggered ()

Public Signals inherited from QObject
void	destroyed (QObject *obj=nullptr)

void	objectNameChanged (const QString &objectName)

Public Methods
	QAbstractTransition (QState *sourceState=nullptr)

virtual	~QAbstractTransition ()

void	addAnimation (QAbstractAnimation *animation)

QList< QAbstractAnimation * >	animations () const

QStateMachine *	machine () const

void	removeAnimation (QAbstractAnimation *animation)

void	setTargetState (QAbstractState *target)

void	setTargetStates (const QList< QAbstractState * > &targets)

void	setTransitionType (TransitionType type)

QState *	sourceState () const

QAbstractState *	targetState () const

QList< QAbstractState * >	targetStates () const

TransitionType	transitionType () const

Public Methods inherited from QObject
	QObject (QObject *parent=nullptr)

	~QObject ()

bool	blockSignals (bool block)

const QList< QObject * > &	children () const

bool	connect (const QObject *sender, const QString &signalMethod, const QString &location, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool	connect (const QObject *sender, const QString &signalMethod, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

bool	disconnect (const QObject *receiver, const QString &slotMethod=QString ()) const

bool	disconnect (const QString &signalMethod, const QString &location, const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

bool	disconnect (const QString &signalMethod=QString (), const QObject *receiver=nullptr, const QString &slotMethod=QString ()) const

void	dumpObjectInfo ()

void	dumpObjectTree ()

QList< QString >	dynamicPropertyNames () const

virtual bool	eventFilter (QObject watched, QEvent event)

template<typename T >
T	findChild (const QString &childName=QString ()) const

template<class T >
QList< T >	findChildren (const QRegularExpression &regExp, Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

template<class T >
QList< T >	findChildren (const QString &childName=QString (), Qt::FindChildOptions options=Qt::FindChildrenRecursively) const

bool	inherits (const QString &className) const

void	installEventFilter (QObject *filterObj)

bool	isWidgetType () const

bool	isWindowType () const

void	killTimer (int id)

const QMetaObject *	metaObject () const

void	moveToThread (QThread *targetThread)

QString	objectName () const

QObject *	parent () const

template<class T = QVariant>
T	property (const QString &name) const

void	removeEventFilter (QObject *obj)

void	setObjectName (const QString &name)

void	setParent (QObject *parent)

bool	setProperty (const QString &name, const QVariant &value)

bool	signalsBlocked () const

int	startTimer (int interval, Qt::TimerType timerType=Qt::CoarseTimer)

QThread *	thread () const

Protected Methods
bool	event (QEvent *event) override

virtual bool	eventTest (QEvent *event) = 0

virtual void	onTransition (QEvent *event) = 0

Protected Methods inherited from QObject
virtual void	childEvent (QChildEvent *event)

virtual void	connectNotify (const QMetaMethod &signalMethod) const

virtual void	customEvent (QEvent *event)

virtual void	disconnectNotify (const QMetaMethod &signalMethod) const

bool	isSignalConnected (const QMetaMethod &signalMethod) const

int	receivers (const QString &signal) const

QObject *	sender () const

int	senderSignalIndex () const

virtual void	timerEvent (QTimerEvent *event)

Properties
	sourceState

	targetState

	targetStates

	transitionType

Properties inherited from QObject
	objectName

Additional Inherited Members
Public Slots inherited from QObject
void	deleteLater ()

Static Public Methods inherited from QObject
static bool	connect (const QObject sender, const QMetaMethod &signalMethod, const QObject receiver, const QMetaMethod &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

static bool	connect (const QObject sender, const QString &signalMethod, const QObject receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection, const QString &location=QString ())

static bool	connect (const QObject sender, const QString &signalMethod, const QString &location, const QObject receiver, const QString &slotMethod, Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool	connect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver receiver, SlotReturn (SlotClass::slotMethod)(SlotArgs...), Qt::ConnectionType type=Qt::AutoConnection)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool	connect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, T slotLambda, Qt::ConnectionType type=Qt::AutoConnection)

static bool	disconnect (const QObject sender, const QMetaMethod &signalMethod, const QObject receiver, const QMetaMethod &slotMethod)

static bool	disconnect (const QObject sender, const QString &signalMethod, const QObject receiver, const QString &slotMethod)

static bool	disconnect (const QObject sender, const QString &signalMethod, const QString &location, const QObject receiver, const QString &slotMethod)

static bool	disconnect (const QObject sender, std::nullptr_t, const QObject receiver, std::nullptr_t)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class SlotClass , class... SlotArgs, class SlotReturn >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver receiver, SlotReturn (SlotClass::slotMethod)(SlotArgs...))

template<class Sender , class SignalClass , class... SignalArgs, class Receiver >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, std::nullptr_t slotMethod=nullptr)

template<class Sender , class SignalClass , class... SignalArgs, class Receiver , class T >
static bool	disconnect (const Sender sender, void (SignalClass::signalMethod)(SignalArgs...), const Receiver *receiver, T slotMethod)

static QMetaObject &	staticMetaObject ()

static QString	tr (const char text, const char comment=nullptr, std::optional< int > numArg=std::optional< int >())

Related Functions inherited from QObject
T	qobject_cast (QObject *object)

	QObjectList

Detailed Description

The QAbstractTransition class is the abstract base class of transitions between states (QAbstractState objects) of a QStateMachine. QAbstractTransition is part of State Machine.

The sourceState() method returns the source of the transition. The targetStates() method returns the targets of the transition. The machine() function returns the state machine that the transition is part of. The triggered() signal is emitted when the transition has been triggered.

Transitions can cause animations to be played. Use addAnimation() to add an animation to the transition.

Subclassing

The eventTest() function is called by the state machine to determine whether an event should trigger the transition. In your reimplementation you typically check the event type and cast the event object to the proper type, and check that one or more properties of the event meet your criteria.

The onTransition() function is called when the transition is triggered; reimplement this function to perform custom processing for the transition.

See also: removeAnimation(), animations()

Member Enumeration Documentation

enum QAbstractTransition::TransitionType

This enum specifies the kind of transition. By default the type is an external transition.

Constant	Value	Description
`QAbstractTransition::ExternalTransition`	`0`	Any state that is the source state of a transition (which is not a target-less transition) is left, and re-entered when necessary.
`QAbstractTransition::InternalTransition`	`1`	If the target state of a transition is a sub-state of a compound state, and that compound state is the source state, an internal transition will not leave the source state.

See also: QAbstractTransition::transitionType

Constructor & Destructor Documentation

QAbstractTransition::QAbstractTransition ( QState * sourceState = nullptr )

Constructs a new QAbstractTransition object with the given sourceState.

QAbstractTransition::~QAbstractTransition ( )

virtual

Destroys this transition.

Method Documentation

void QAbstractTransition::addAnimation ( QAbstractAnimation * animation )

Adds the given animation to this transition. The transition does not take ownership of the animation.

See also: removeAnimation(), animations()

QList< QAbstractAnimation * > QAbstractTransition::animations ( ) const

Returns the list of animations associated with this transition, or an empty list if it has no animations.

See also: addAnimation()

bool QAbstractTransition::event ( QEvent * event )

overrideprotectedvirtual

Reimplemented from QObject::event()

Reimplemented in QSignalTransition::event(), QEventTransition::event()

bool QAbstractTransition::eventTest ( QEvent * event )

protectedpure virtual

This function is called to determine whether the given event should cause this transition to trigger. Reimplement this function and return true if the event should trigger the transition, otherwise return false.

Implemented in QSignalTransition::eventTest(), QMouseEventTransition::eventTest(), QEventTransition::eventTest(), QKeyEventTransition::eventTest()

QStateMachine * QAbstractTransition::machine ( ) const

Returns the state machine this transition is part of or a nullptr if the transition is not part of a state machine.

void QAbstractTransition::onTransition ( QEvent * event )

protectedpure virtual

This function is called when the transition is triggered. The given event is what caused the transition to trigger. Reimplement this function to perform custom processing when the transition is triggered.

Implemented in QSignalTransition::onTransition(), QMouseEventTransition::onTransition(), QEventTransition::onTransition(), QKeyEventTransition::onTransition()

void QAbstractTransition::removeAnimation ( QAbstractAnimation * animation )

Removes the given animation from this transition.

See also: addAnimation()

void QAbstractTransition::setTargetState ( QAbstractState * target )

Sets the property for targetState of this transition to target.

void QAbstractTransition::setTargetStates ( const QList< QAbstractState * > & targets )

Sets the property for targetStates of this transition to the given targets.

void QAbstractTransition::setTransitionType ( QAbstractTransition::TransitionType type )

Sets the type of the transition to type.

See also: transitionType()

QState * QAbstractTransition::sourceState ( ) const

Returns the value of the property sourceState. Returns nullptr if this transition has no source state.

QAbstractState * QAbstractTransition::targetState ( ) const

Returns the value of the property targetState. Returns a nullptr if this transition has no target.

void QAbstractTransition::targetStateChanged ( )

signal

This signal is emitted when the targetState property is changed.

See also: QAbstractTransition::targetState

QList< QAbstractState * > QAbstractTransition::targetStates ( ) const

Returns the value of the property targetStates of this transition. Value an empty list if this transition has no target states.

void QAbstractTransition::targetStatesChanged ( )

signal

This signal is emitted when the targetStates property is changed.

See also: QAbstractTransition::targetStates

QAbstractTransition::TransitionType QAbstractTransition::transitionType ( ) const

Returns the type of the transition.

See also: setTransitionType()

void QAbstractTransition::triggered ( )

signal

This signal is emitted when the transition has been triggered (after onTransition() has been called).

Property Documentation

QAbstractTransition::sourceState

This property holds the source state (parent) of this transition.

Properties	Class Methods
read	sourceState

QAbstractTransition::targetState

This property holds the target state of this transition.

If a transition has no target state, the transition may still be triggered, but this will not cause the state machine's configuration to change (i.e. the current state will not be exited and re-entered).

Properties	Class Methods
read	targetState
write	setTargetState
notify	targetStateChanged

QAbstractTransition::targetStates

This property holds the target states of this transition. If multiple states are specified, all must be descendants of the same parallel group state.

Properties	Class Methods
read	targetStates
write	setTargetStates
notify	targetStatesChanged

QAbstractTransition::transitionType

Indicates whether this transition is an internal transition, or an external transition.

Internal and external transitions behave the same, except for the case of a transition whose source state is a compound state and whose target(s) is a descendant of the source. In such a case, an internal transition will not exit and re-enter its source state, while an external one will.

By default the type is an external transition.

Properties	Class Methods
read	transitionType
write	setTransitionType
revision
